Specifications
Wacker Neuson 3001
Engine
Model: Yanmar 3TNV88, 3-cylinder diesel
Displacement: 1.642 liters
Power Output: 26 kW (35 hp) at 2,800 rpm
Emission Compliance: EU Stage 3A / EPA Tier 3
Performance
Payload Capacity: 3,000 kg (6,614 lbs)
Heaped Skip Capacity: 1,850 liters (489 gallons)
Struck Skip Capacity: 1,500 liters (396 gallons)
Maximum Travel Speed: 22 km/h (13.7 mph)
Gradeability: 50%
Turning Radius (Outside): 4,000 mm (13 ft 1 in)
Dimensions
Length: 3,980 mm (13 ft 1 in)
Width: 1,785 mm (5 ft 10 in)
Height (ROPS): 2,670 mm (8 ft 9 in)
Height (ROPS Folded): 1,870 mm (6 ft 2 in)
Ground Clearance: 280 mm (11.0 in)
Wheelbase: 1,960 mm (6 ft 5 in)
Drive & Steering
Drive Type: Hydrostatic, permanent 4-wheel drive
Steering: Hydrostatic articulated steering with ±37° articulation angle
Oscillation: ±15°
Brakes
Service Brake: Hydrostatic braking effect via drive system
Parking Brake: Mechanically actuated multiple-disc brake on front axle
Hydraulics
Hydraulic Pump Flow: 45 liters/min
Hydraulic Oil Tank Capacity: 48 liters (12.7 gallons)
Electrical System
Battery: 12 V, 88 Ah
Alternator: 12 V, 40 A
Starter Motor: 12 V, 1.7 kW (2.3 hp)
Tyres
Standard Tyres: 11.5/80-15.3
Tyre Pressure: 4 bar (58 psi)
Capacities
Fuel Tank: 40 liters (10.6 gallons)
Engine Oil: 6.7 liters (1.8 gallons)
Coolant System: 8.2 liters (2.2 gallons)
Wacker Neuson 1501
Engine
Manufacturer: Yanmar
Model: 3TNV76
Type: 3-cylinder, liquid-cooled, diesel
Displacement: 1,116 cm³
Power Output: 17 kW (23 hp) at 3,000 rpm
Emission Standard: EU Stage V
Performance
Payload Capacity: 1,500 kg (3,306 lbs)
Skip Capacity (Level): 650 liters (0.65 m³ / 0.85 yd³)
Skip Capacity (Heaped): 800 liters (0.8 m³ / 1.05 yd³)
Maximum Travel Speed: 16 km/h (9.9 mph)
Gradeability: 50%
Turning Radius (Outside): 3,300 mm (10 ft 10 in)
Dimensions
Overall Length: 3,300 mm (10 ft 10 in)
Width: 1,305 mm (4 ft 3 in)
Height (ROPS): 2,550 mm (8 ft 4 in)
Height (ROPS Folded): 1,960 mm (6 ft 5 in)
Ground Clearance: 260 mm (10.2 in)
Skip Options
Swivel Tip Skip:
Swivel Range: 180°
Maximum Dumping Height: 680 mm (2 ft 3 in)
Skip Height (Tipped): 2,250 mm (7 ft 5 in)
Drive & Steering
Drive Type: Hydrostatic Twin-Lock 4-wheel drive
Steering: Hydrostatic articulated frame steering
Articulation Angle: ±33°
Oscillation Angle: ±15°
Standard Tyres: 10.00/75-15
Hydraulics
Drive Pump: Axial piston pump
Flow Rate: 135 liters/min
Operating Pressure: 360 bar
Work Pump: Gear pump
Flow Rate: 25 liters/min
Operating Pressure: 170 bar
Capacities
Fuel Tank: 20 liters (5.3 US gal)
Hydraulic Oil Tank: 20 liters (5.3 US gal)
Electrical System
Voltage: 12 V
Battery: 45 Ah
Alternator: 40 A
Starter Motor: 1.1 kW
Additional Features
Fold-down ROPS (Roll Over Protection System)
Accessible operator station from both sides with wide leg protection
Reverse alarm, rotating beacon
Noise Level: 101 dB(A)
1.2t Mini Ex
Mini Excavator
Engine type: Kubota D722
Output HP/rpm: 10.3 kW(13.8 hp)/2200 r/min
Operating Weight: 2667lbs (1209.73kg)
Digging bucket capacity: 0.7 cubic feet (0.02m³)
Max bucket digging force: 2,293lbs
Max arm digging force: 1,349lbs
Pump Capacity: 4.86GPM
Max digging depth: 5´ 2˝ (1.57m)

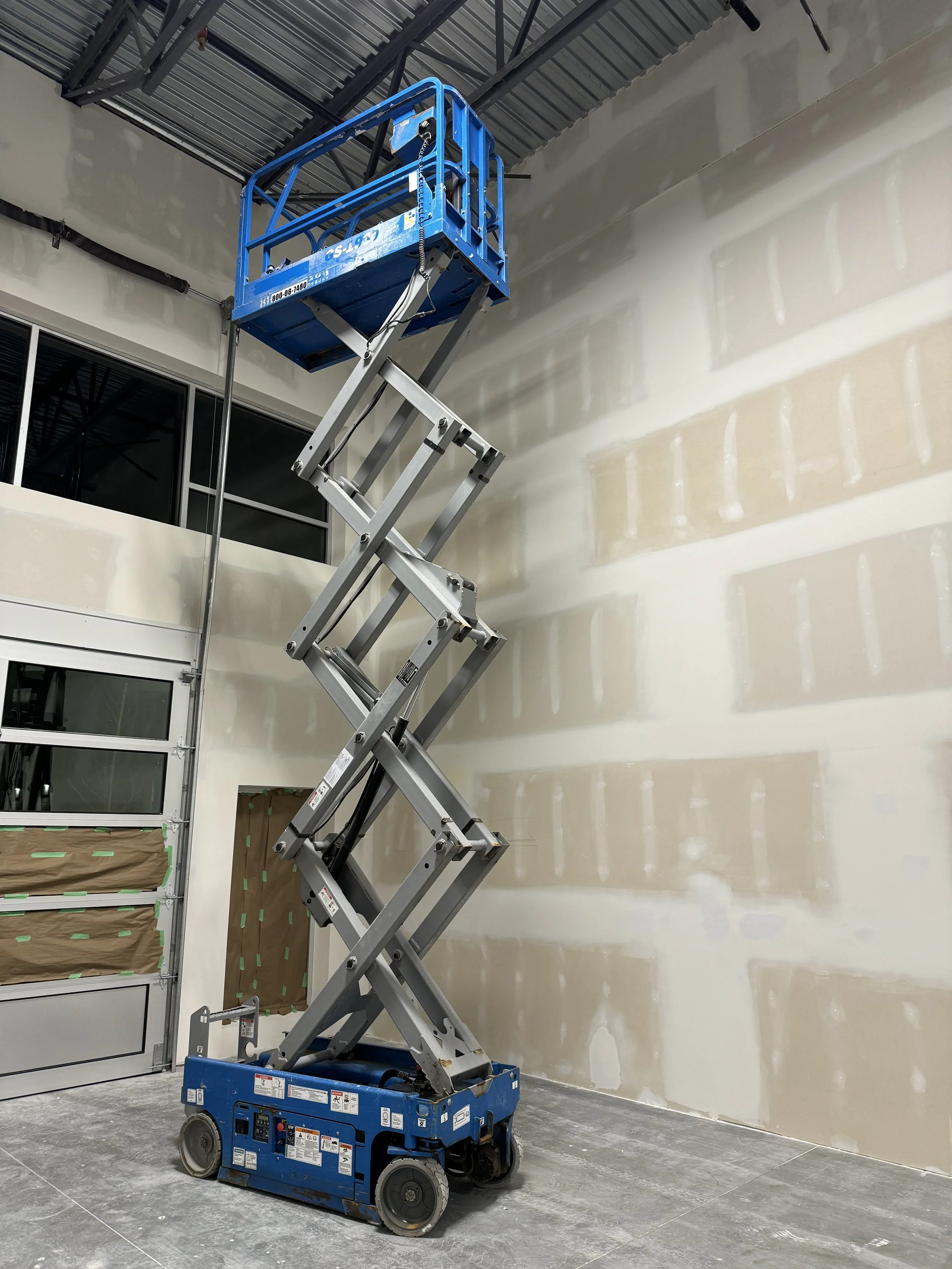

Genie 1930
Full specifications for the Genie 1930 can be found here
RD50
Fuel Consumption
≤0.395g/kw.hFuel
Tank Capacity
3.6L
Engine Oil Capacity
0.6L
Total Weight
360kg
Max Loading Weight
500kg
Machine Size
Length 1.5m/4’ 11”
Width 0.833m/2’ 8.8”
Height 1.24m/4’ 0.82”
Tipping System
Hydraulic Tipping
Tipping Angle
100°
Walking Speed
2.88km/h
Minimum Turning Radius
1.15m
Minimum Ground Clearance
100mm
Climbing Ability
20°
Hydraulic Oil Model
46# Anti-wear
